ZaligVinder:

This is the current page. It shows you nothing more than this small guide.

This pages displays a summary for all of your benchmark sets and tracks.

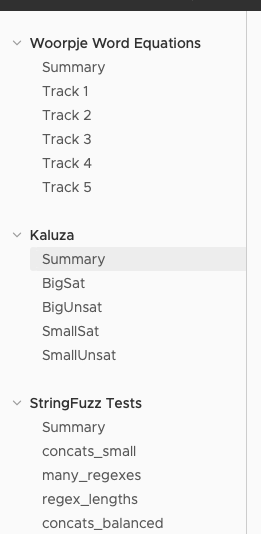

The sub navigation on the right hand side allows you to choose a specific track or the summary for a whole set of benchmarks. You may have to scroll down to view other tracks.

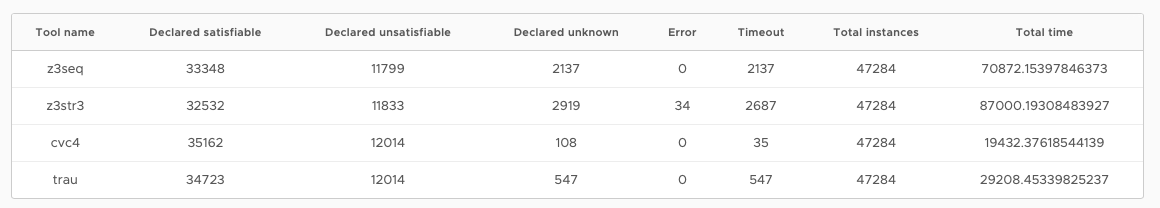

Each page offers the user an overview table of grouped instances. The table holds the tool name, how many instances are declared as satisfiable resp. unsatisfiable, unknown instances (the solver terminates without a result before getting killed by the timeout limit), misclassification of an instance (error - currently done by a majority vote between all results of the solvers), timed out instances, the total amount within a track/set of benchmarks, and the overall solving time.

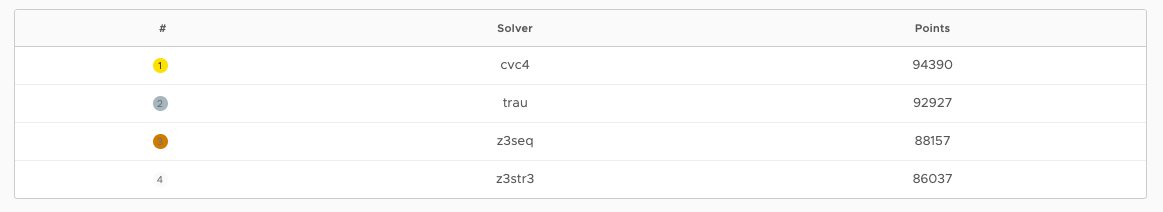

The second table shows a ranking of each solver participating on a track. The grading is easily modifiable and currently is done as follows:

where #solver is the amount of solvers being part of a benchmark set and #pos the position of the solver within all solvers who classified an instance correctly.

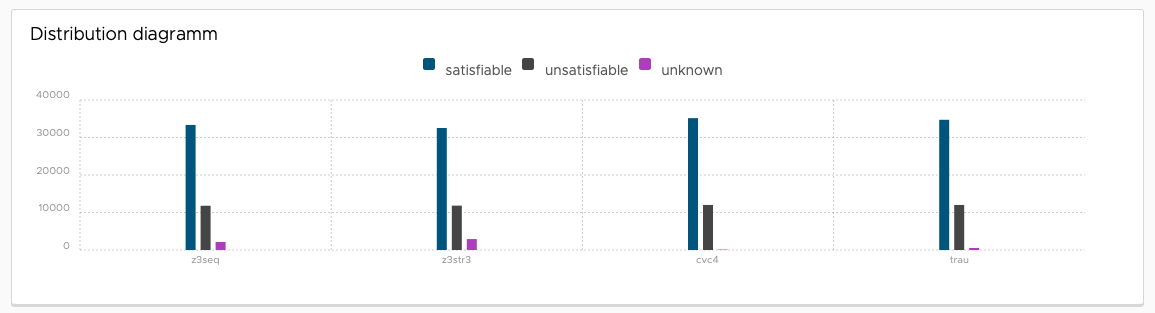

The first diagram shows a distribution for each solver distinguishing between satisfiable/unsatisfiable and timed out resp. unknown instances.

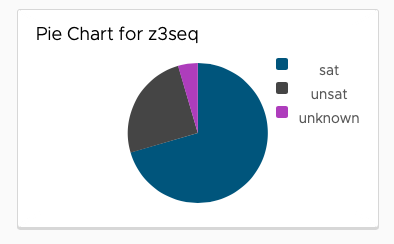

The next set of diagrams show the same distribution as before as a pie diagram. This makes an easier identification possible in some cases.

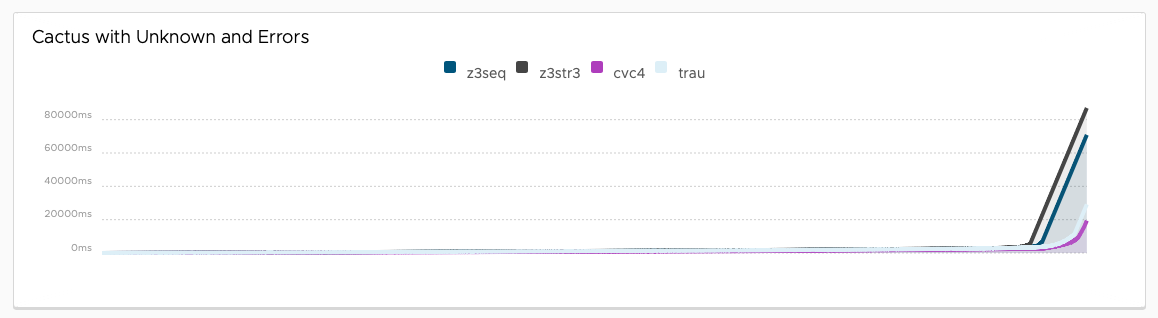

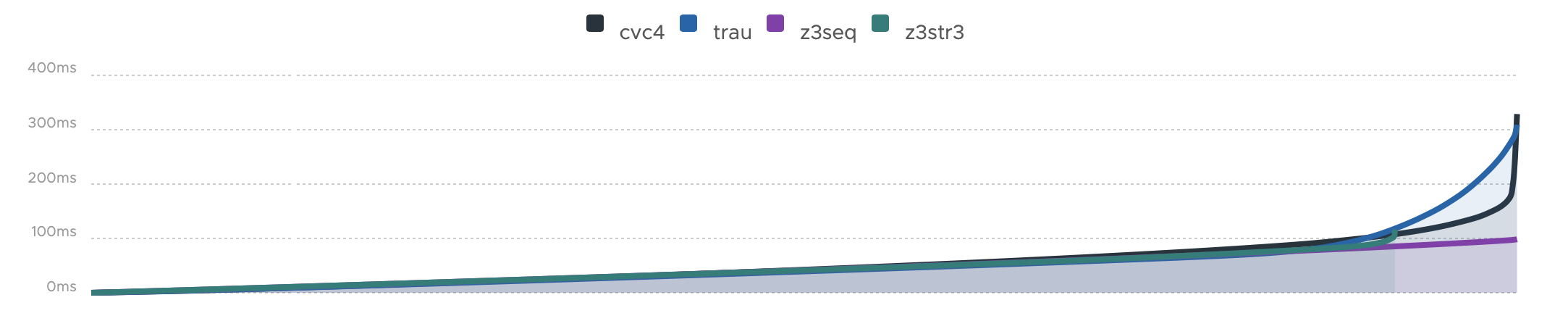

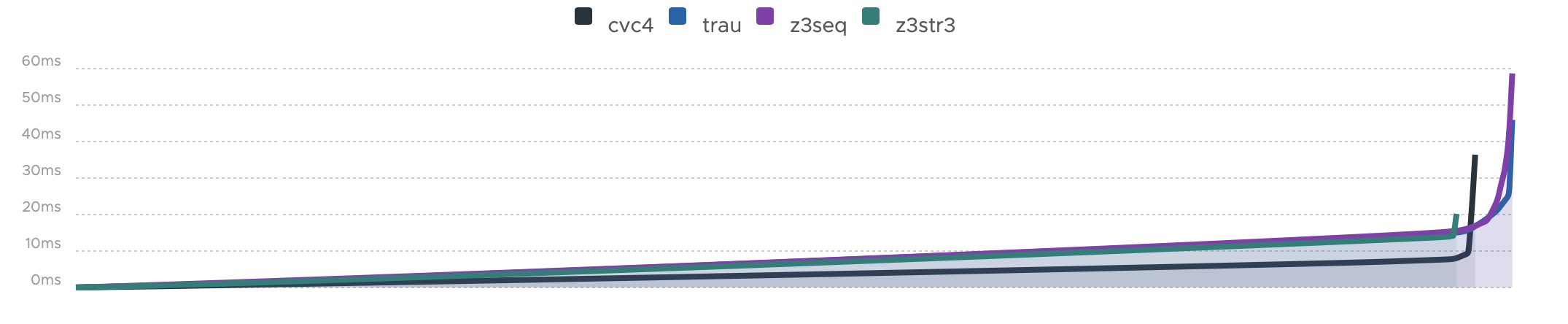

A cactus diagram follows. In these kind of plots all instances are sorted by their solving time and listed ascending as a point within a line diagram. The first cactus plot lists all instances of a track / benchmark set. It gives an intuition of how quick a solver classifies all instances over time. The structure of a cactus plot automatically holds all timed out instances in the end.

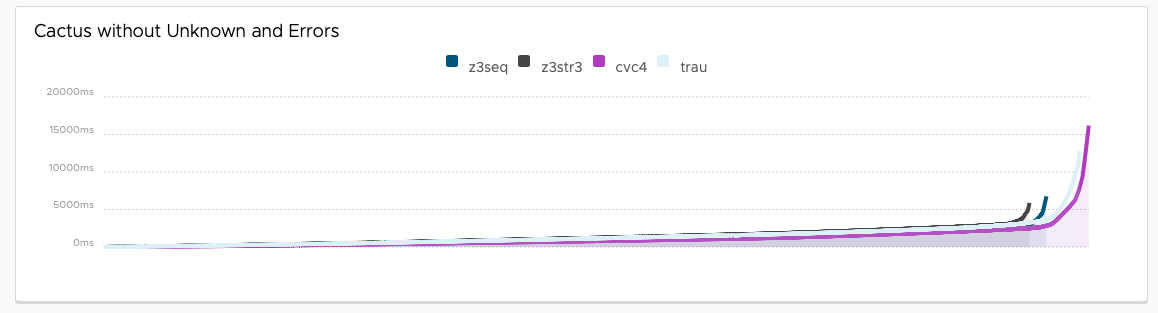

Excluding the unknowns an errors gives an intuition of how quick a solver comes up with the correct answers. By clicking on a label of the graph, the user is able to active/deactivate a specific solver.

This page offers you the opportunity to compare different solvers per instances; finding out what instances caused a good or a bad behaviour.

The navigation between different tracks and benchmark summaries is again done using the side navigation as explained previously.

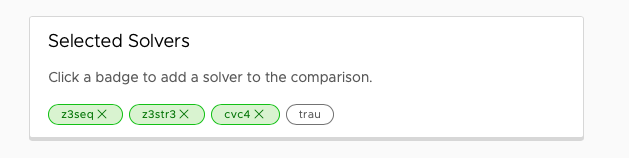

The top box allows you to choose between the available solvers by clicking on a label. Solvers highlighted in green are part of the current comparison. You can disable them by simply clicking the x. White labelled solvers are not part of the comparison. Active them again by a click.

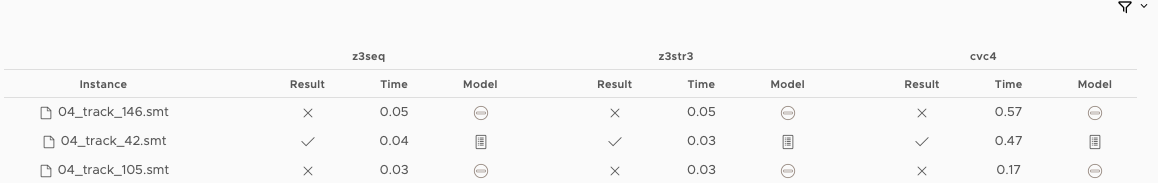

The comparison table holds the following elements:

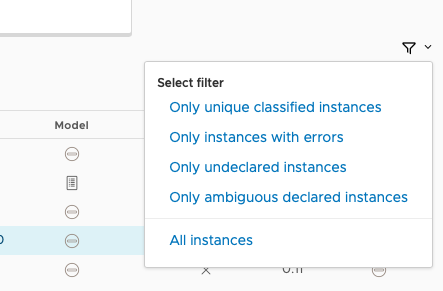

The filter icon on the right hand side gives you the following options:

We distribute the source of ZaligVinder here.

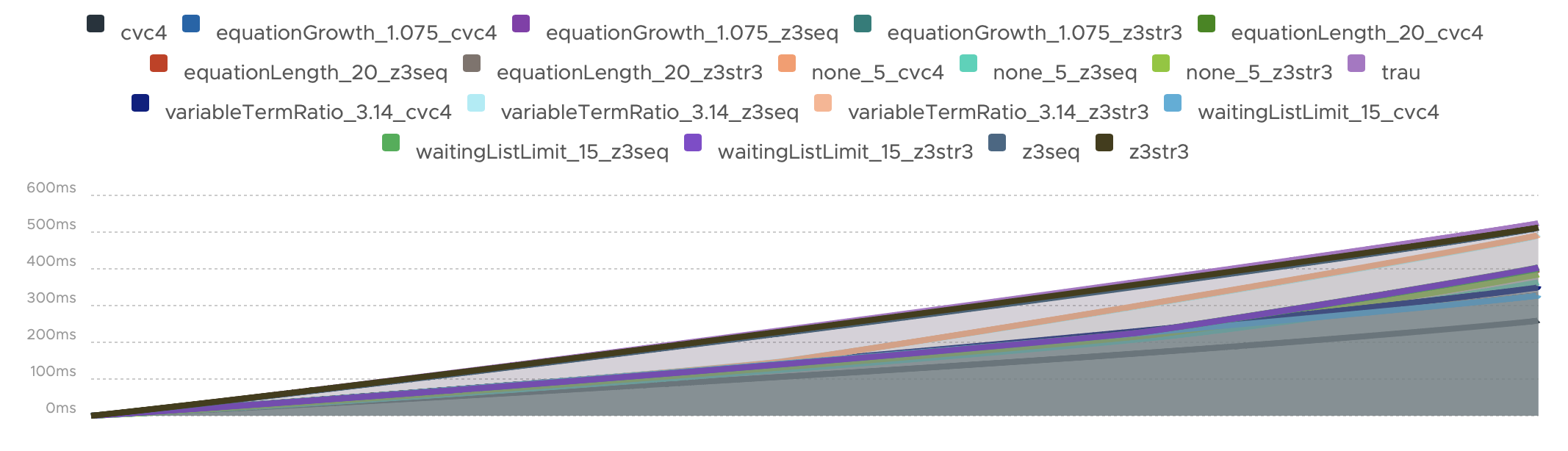

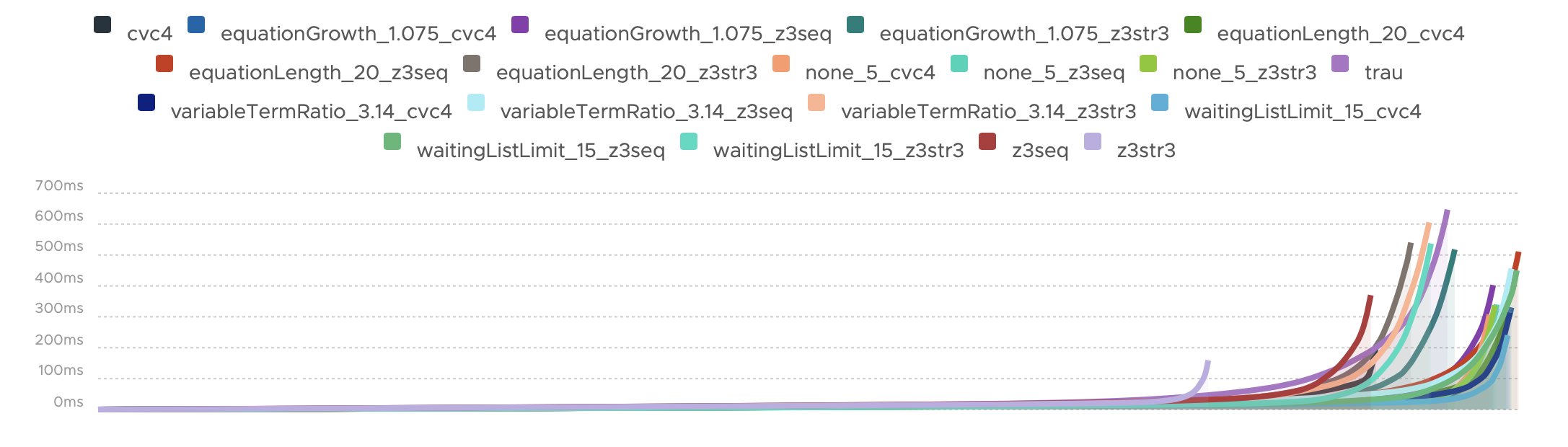

We created a set of benchmarks to test the abilities of our tool Woorpje. It contains 5 tracks with instances containing mostly string constraints, but also linear length constrains. Running this set on their competitors revealed its difficulty. The set is generated using several hard involved examples developed in the theoretical study of word equations.

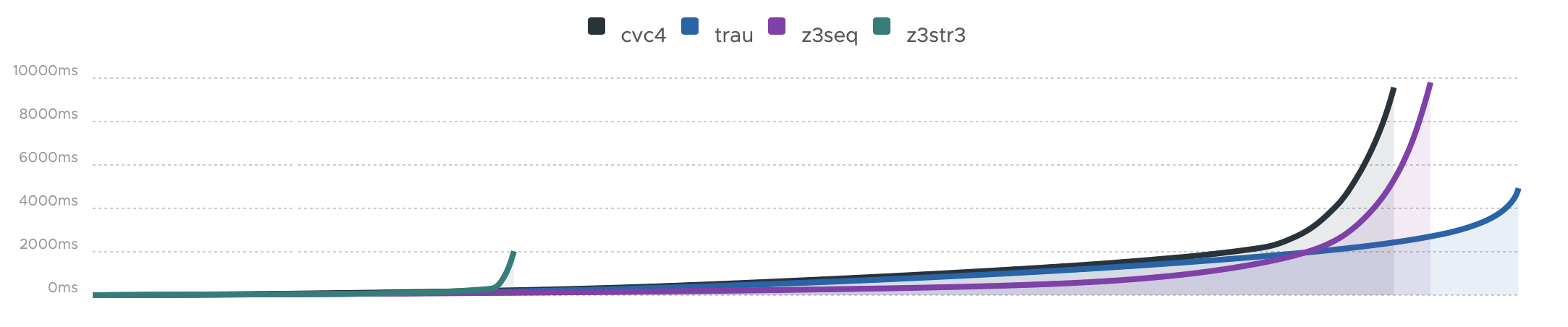

Reynolds et al. used the tool PyEx - a symbolic executor for Python programs - to generate a set of 25,421 bench- marks. They used 19 target functions sampled from four popular Python packages to generate the resulting benchmark set.

The benchmarks are available here.

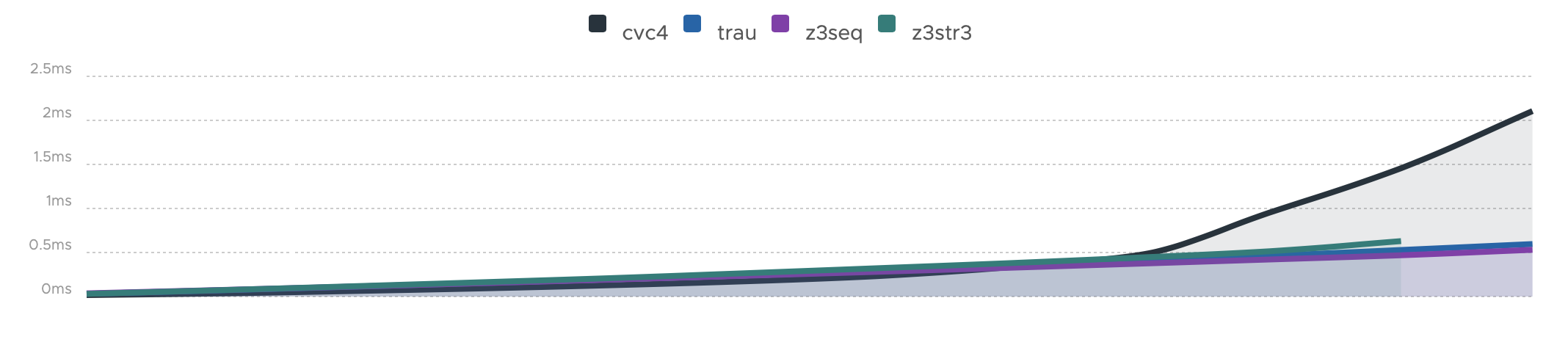

Zheng et al. [23] generated a set of benchmarks using constraints from real-world Java sanitizer methods which where used to evaluate the PISA system. It contains 12 complex instances including multiple different string operations like indexOf, substring as a result of the Sanitizer structure.

The benchmarks are available here.

Abdulla et al. share a set of 5 tracks consisting of queries generated during verification of string-processing programs. Each formula is rather small compared to those in other sets of benchmarks , but makes heavy use of regular expressions containing Kleene stars. This makes it a challenging one for all solvers.

The benchmarks are available here.

Within this set of benchmarks generated by Abdulla et al. each instance holds multiple easy, mostly unsatisfiable formulae consisting only of string constraints. The set aims for testing the ability of declaring inputs as unsatisfiable, which is in general harder than finding a solution.

Set taken from here.

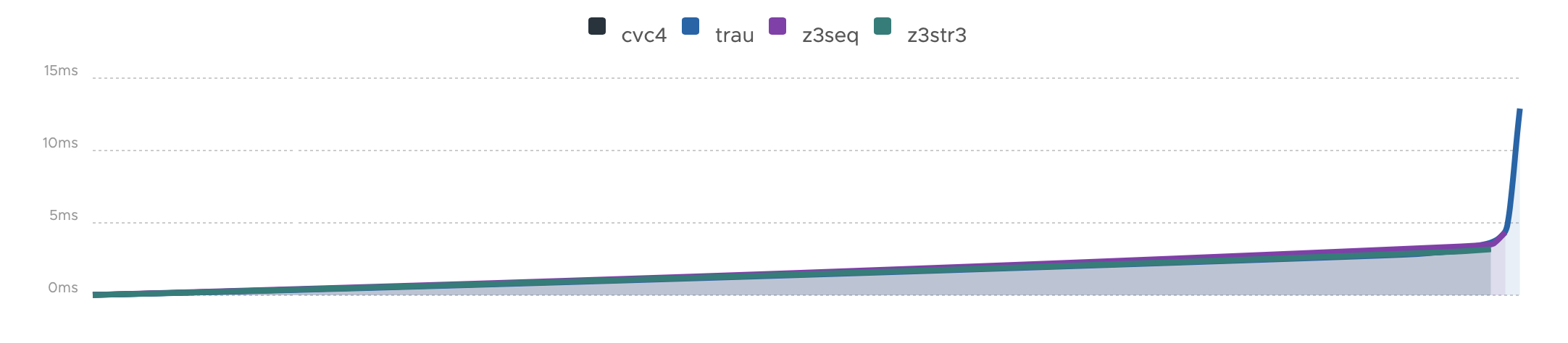

An interesting set of benchmarks shared by the Trau developers.

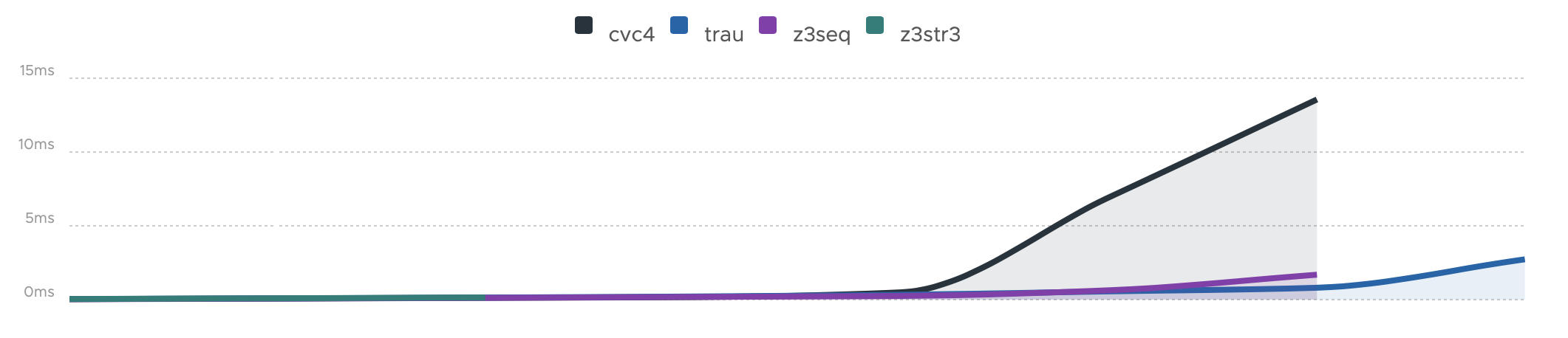

Zheng et al. generated a second set of benchmarks using the output of security warnings generated by IBM Security AppScan Source Edition. They ran the tool on popular websites to obtain traces of program statements which where translated into SMT formulae. The traces reflect potentially vulnerable information flows and therefore represent common real-world constraints. The set consists of 8 instances containing string functions and disequality constraints over strings.

The benchmarks are available here.

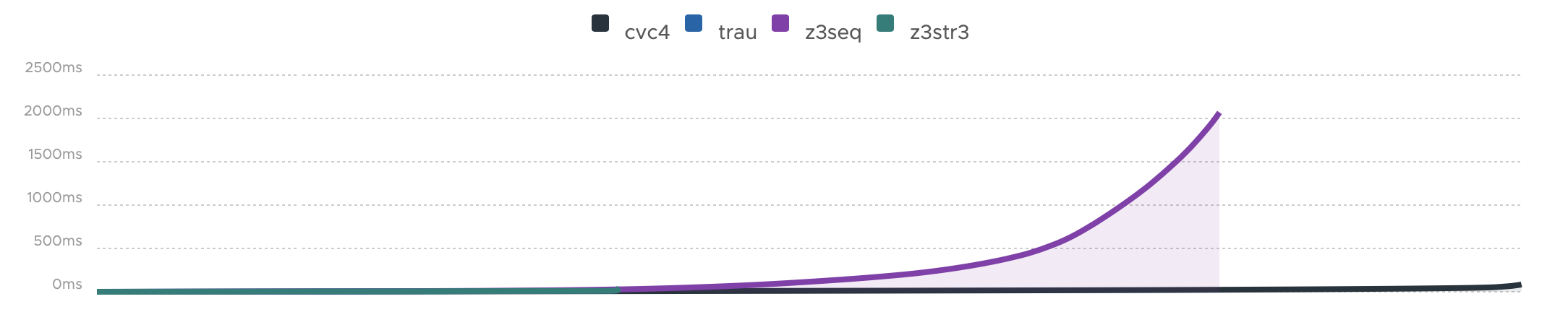

A nice set of benchmarks shared by the Sloth developers. This set is available in their GIT.

Blotsky et al. introduced a tool called StringFuzz to generate and transform SMT-Lib Instances of string problems implemented in Python. The authors share a set of benchmarks generated using their tool, which aims to address typical industrial instances, potentially challenging for solvers. The set contains 17 tracks ranging from instances containing pure string constraints to hard to solve regular expression constraints. They aim for generating instances which follow structures hard to handle by some solvers (e.g. tree-like instances).

The benchmarks are available here.

Saxena et al. used their tool Kudzu, a symbolic execution framework for JavaScript, to generate more than 50,000 string solving problems. The instances were obtained by lowering JavaScript operations from real world AJAX web applications and are available on their website. The instances are build around string constraints, membership in regular languages (given as regular expressions), and inequalities involving length constraints on string variables. While the size of the formula varies per instance, the variety in the used string operations is rather small. The resulting set of benchmarks was translated by Liang et al. into the SMT-Lib format. It uses string, boolean and linear constraints together with a small amount of string operations.

The benchmarks are available here.

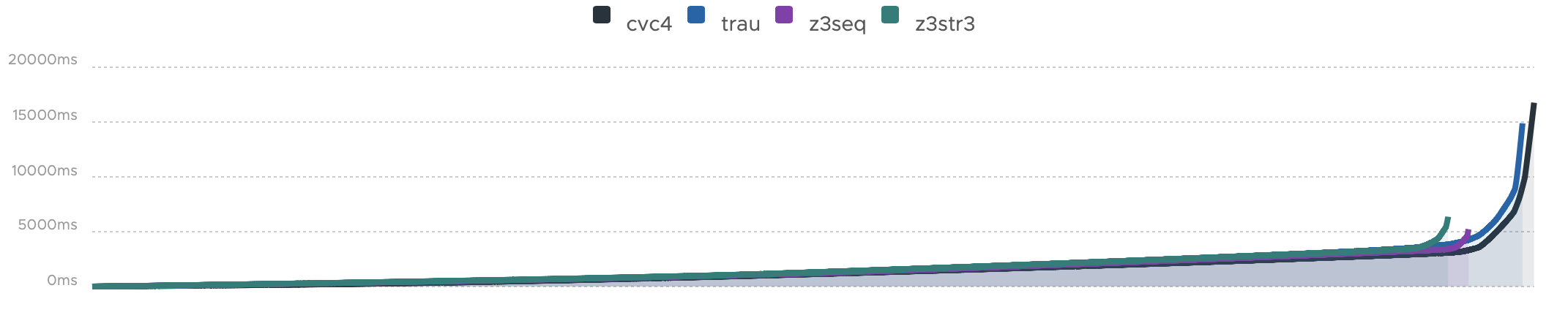

Brennan et al. used their tool called Cashew to normalise (in terms of their tool) 18,896 by Luu et al. extracted benchmarks from the Kaluza benchmark set. By constructing this subset the authors aimed to eliminate the redundancy in the original set. The set varies between easy and difficult string constraints, with Boolean constraints, without using string operations.

The benchmarks are available here.

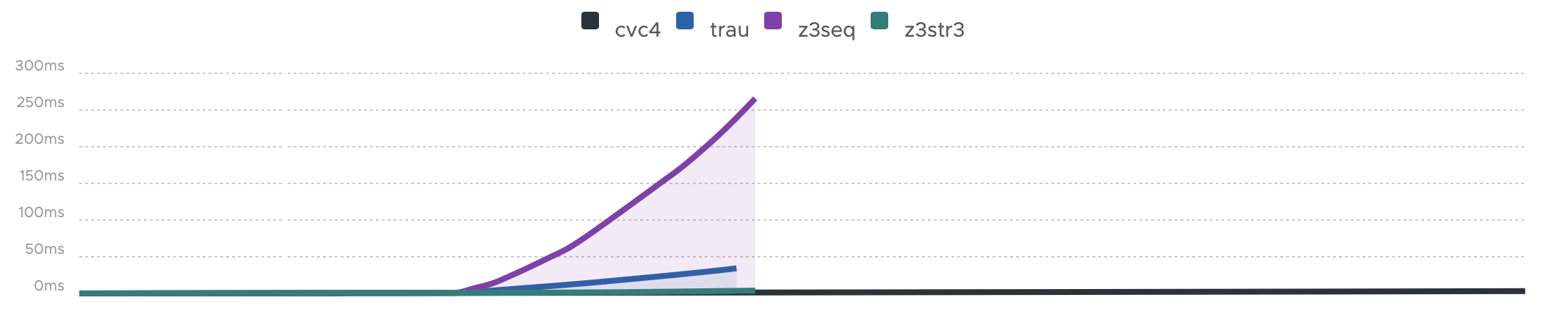

In order to evaluate their tool JOACO, a tool to detect injection vulnerabilities, Thomé et al. created a set of 94 instances based on 11 open-source Java Web applications and security benchmarks used in literature. It displays a variety of instances containing string constraints, regular expressions and string operations.

The benchmarks are available here.

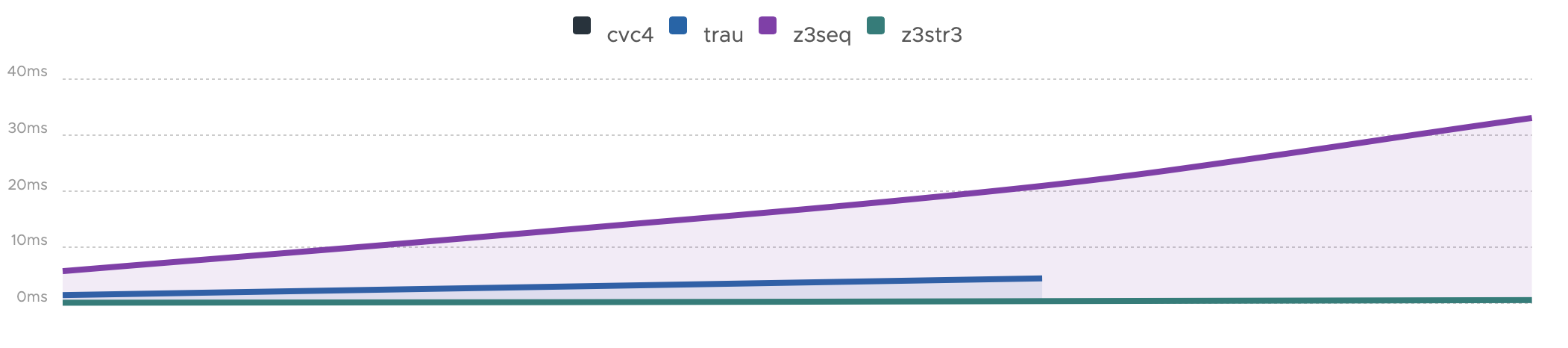

Yu et al. used this set of 4 real-world PHP web applications to evaluate their tool Stranger - a tool detecting and sanitizing vulnerabilities in PHP applications. Thomé et al. manually translated these instances into the SMT-Lib format. The result was a set containing string operations, regular expression membership constrains, and string constraints.

The benchmarks are available here.

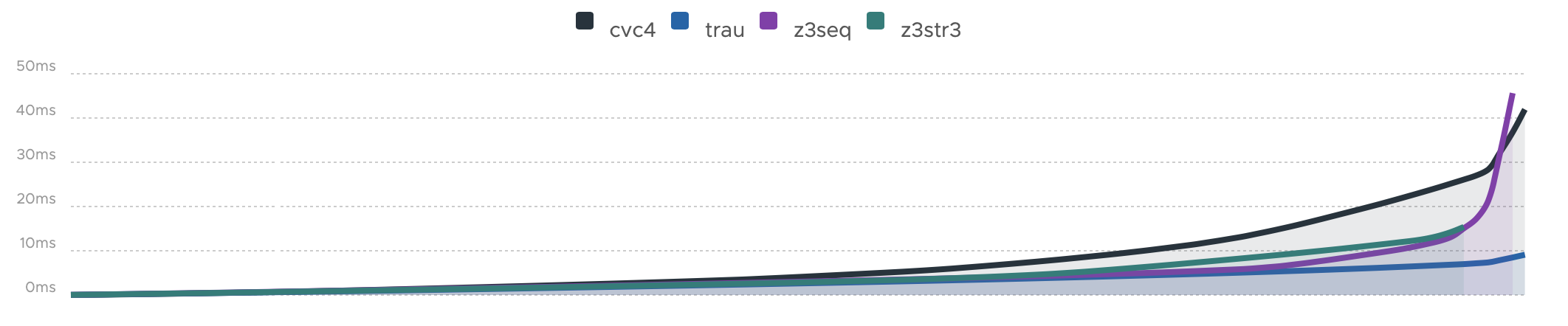

Kausler and Sherman generated a set of benchmarks to evaluate string constraint solvers in terms of symbolic execution. The set was brought down to 120 instances by Thomé et al. It contains constrains from 8 Java programs via dynamic symbolic execution, aiming for real word application. The set mostly contains Boolean and string constraints without string operations.

The benchmarks are available here.
